Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable

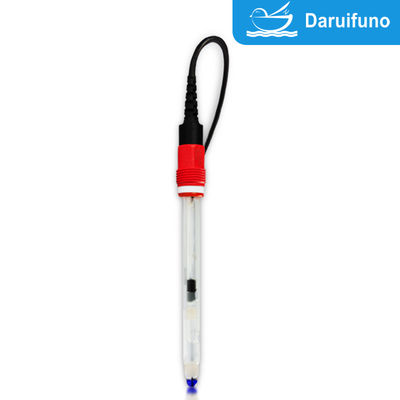

Imagem Grande : Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable

Detalhes do produto:

Lugar de origem:	CHINA
Marca:	Daruifuno
Certificação:	CE, ISO
Número do modelo:	ASP100E

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1
Preço:	USD25-250
Detalhes da embalagem:	Carton
Tempo de entrega:	3-10 dias de trabalho
Termos de pagamento:	T/T, Western Union, MoneyGram
Habilidade da fonte:	10000 conjuntos por mês

Contato

Analog pH Sensor 0-14pH Range for Waste Water with 5m Cable

descrição

Nome do produto:	Sensor do PH	Faixa de medição:	0~14pH
Zero (e0) pH:	± 0,25ph	SLOP%:	＞ 95%
Pressão de trabalho:	0-4Bar	TEMPERAÇÃO DE TRABALHO:	0~100℃
Unidade de temperatura:	PT100, PT1000, NTC10K personalizados	Arame:	5 medidores padrão
Destacar:	analog pH sensor for sewage , industrial wastewater pH sensor , pH ORP sensor with warranty

Analog PH Sensor For Domestic Sewage Or Industrial Waste Water

Analog PH Sensor With Split Wire For 0~100℃ For Recycled Water Rain Water

The Daruifuno pH sensor ASP100E delivers precise pH measurement across a full range of 0 to 14 pH. Its advanced design features:

Operational and Environmental Capabilities

Engineered for versatile performance in diverse conditions:

Medium-to-low temperature range (0-80°C): Continuous operation at pressures up to 4 bar
High-temperature range (80-100°C): Continuous measurements for up to 30 minutes at 2 bar pressure

Detailed Performance Metrics

Optimal sample flow rate: 0.001 m/s to 0.5 m/s
Zero-point (E0) pH: ±0.25 pH for excellent calibration stability
Slope: Over 95% sensitivity
Temperature compensation options: PT100, PT1000, or customized NTC10K sensor

Installation and Design Flexibility

Standard dimensions: 12mm diameter × 120mm length (custom sizes available)

Installation options: Twist-proof cap or PG13.5 thread
Cable configuration: Integrated or detachable

Specifications

Model	ASP100E	ASP101E	ASR100E
Measuring Object	PH	PH	ORP
Measuring Range	0~14pH	0~14pH	±2000mV
Indicator Electrode	Blue low impedance hemispherical glass membrane	Blue low impedance hemispherical glass membrane	Platinum
Reference System	Ag/AgCl reference electrode, double salt bridge, KCl gel
Electrode Material	Glass annular ceramic hole	Glass Dot-shaped ceramic hole	Glass annular ceramic hole
Working Pressure	Medium/low temp: 0-4bar \| High temp: 0-2bar
Working Temp.	Medium/low temp: 0-80℃ continuous \| High temp: 80-100℃ (≤30 min)
Sample Flow Rate	0.001 m/s to 0.5 m/s
Zero (E0) pH	±0.25pH	±0.25pH	±20mV
SLOP%	＞95%		＞95%
Temperature Unit	PT100, PT1000, NTC10K customized
Dimension	Standard: 12mm diameter × 120mm length (customized available)

Features & Advantages

Large capacity reference for extended service life
Optional cleaning connector for underwater maintenance
Available with PTFE protective cover and self-cleaning interface
Self-cleaning function enhances stability, accuracy, and reliability while reducing maintenance costs

The ASP100E glass pH sensor offers ultimate flexibility with custom mounting accessories for any industrial environment:

Sidewall Mounting: Ideal for large tanks and vessels
Top Flange Mounting: Perfect for sealed reactors
Pipe/Flow Cell Mounting: For in-line measurements
Submersible Mounting: For open tanks and channels
Manual Retractable Holder: Enables maintenance without process shutdown

Enhanced Durability with PTFE Sheath

The optional PTFE (Teflon) sheath provides exceptional corrosion resistance in harsh chemical environments. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.

Applications

The ASP101 pH sensor serves critical monitoring needs across multiple industries:

Water treatment plants: Ensures pH compliance throughout treatment processes
Industrial production: Monitors pH in chemical, pharmaceutical, and food processing
Environmental monitoring: Tracks pH in natural water bodies
Aquaculture: Maintains optimal pond conditions
Aquariums & pools: Protects aquatic life and swimmer safety
Research labs: Supports precise pH measurement in experiments
